Industrial X Ray Inspection System 1000 Units/Hour 0.01mm Accuracy

Product Categories

SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Industrial X Ray Inspection System 1000 UnitsHour 001mm Accuracy
Brand: WELLMAN
Price: 1 USD

Defect Classification : Automatic classification and sorting of defects

Type : Microfocus

Focal spot size : 5μm

Product Type : Automated X Ray Inspection System

Operating System : Windows-based operating system

Max tube voltage : 90kV

Max tube current : 200μA

Brand Name : WELLMAN

Model Number : IL-3000

Certification : CE, FDA

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Packaging Details : Wooden case

Contact Now

WELLMAN IL-3000 In-line Industrial Microfocus X-Ray Inspection System

Advanced SMT PCB inspection system featuring a 10,000-hour maintenance-free X-ray tube and 6-axis motion control for precision automated inspection.

Key Advantages

Maintenance-free operation: Closed-type X-ray tube with lifetime exceeding 10,000 hours
High-definition imaging: 5" HD digital flat panel detector (FPD) for superior image quality
Intuitive navigation: Automatic table movement to clicked locations
Adjustable width: Belt transmission with lead screw & guide rail adjustment (max 620mm)
Precision motion: 6-axis system with servo motors (X-ray tube and FPD move in sync)
Automation ready: Customizable inspection procedures for high-volume production
User-friendly: Simple operation with minimal training required (2 hours)

Technical Specifications

Safety Features

Software Capabilities

Function Module	Operation
X-ray tube control	Mouse-click operation with real-time voltage/current display and adjustment
Image effect adjustment	Adjustable brightness, contrast and gain for optimal imaging
Product list	Save and recall inspection parameters for repeat products
Navigation window	Click-to-move functionality for precise positioning
Voids rate measurement	Automatic calculation with NG/OK indication (red/green)
Other measurement functions	Distance, angle, radius, perimeter, and area calculations
Automatic inspection	Manual setting, array, and automatic identification modes

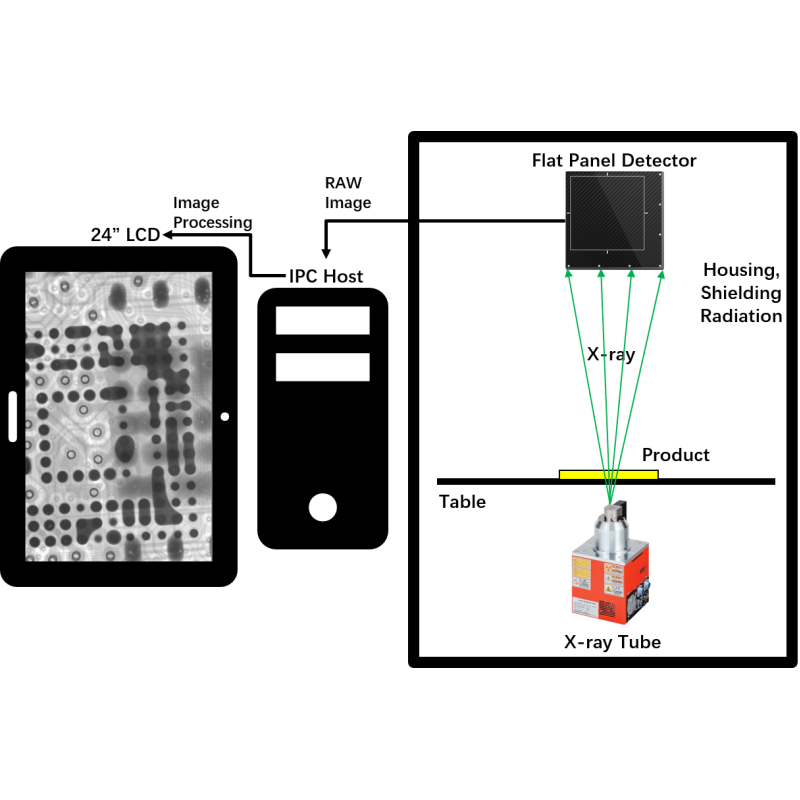

Working Principle

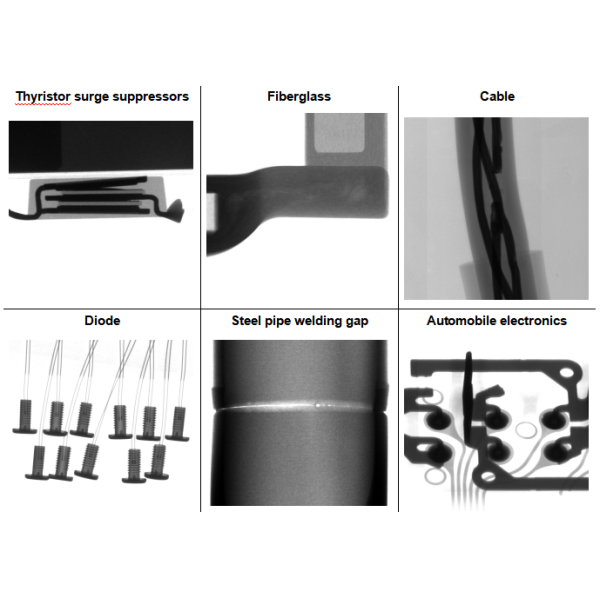

Application Examples
